• Dual-Frame HV architecture (Jobs patent) for an excellent structural rigidity
  • Constant accuracy on the whole operating volume
  • High-volume stock removal rate on tough materials
  • Compact and ergonomic full machine enclosure and minimum foundation requirements

Applications

Food processing Food processing
Medical Medical
Semiconductor industry Semiconductor industry
General engineering General engineering
Energy Energy
Earth transport Earth transport
Sea transport Sea transport
Moulds & Dies Moulds & Dies
Aero structures Al-CFRP-Ti Aero structures Al-CFRP-Ti
Aero engines Aero engines
Space & Defence Space & Defence
Car body & Design Car body & Design
Moulds & Dies Auto Moulds & Dies Auto

Toughness in Milling: high-power and high-torque machining on very tough materials

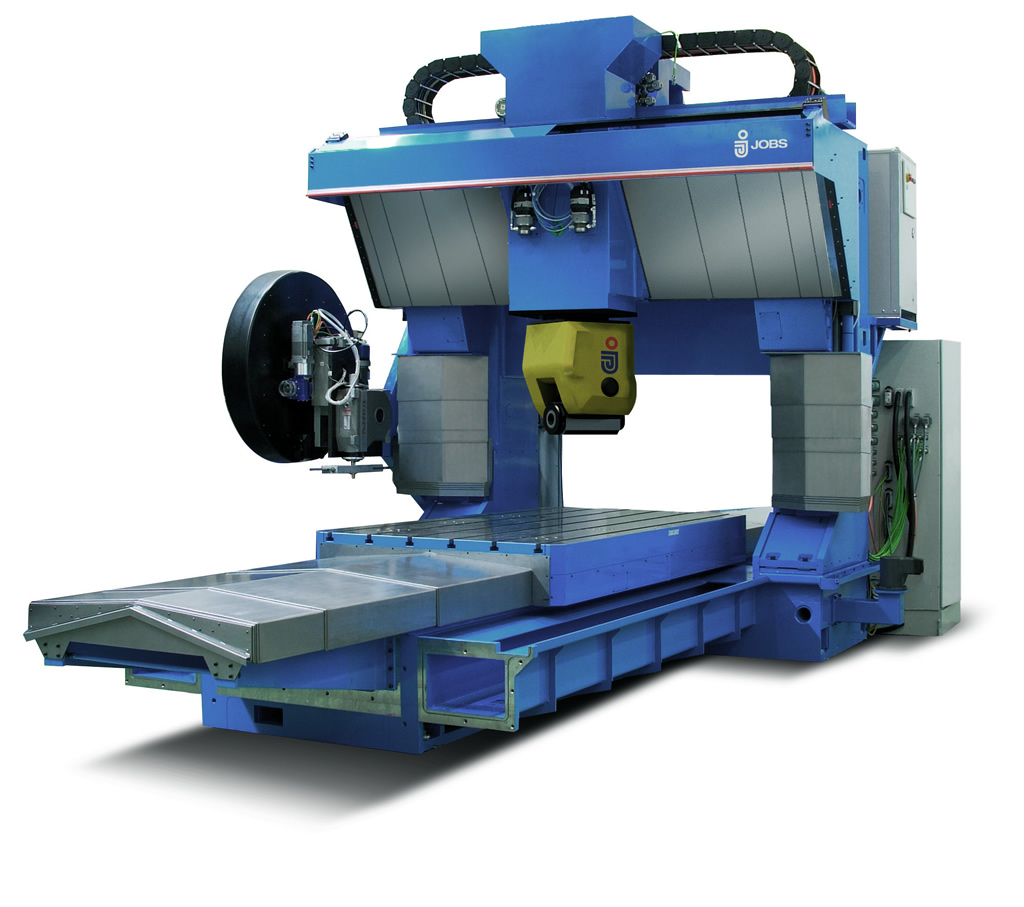

Jobs TARKUS is a double column horizontal/vertical milling centre with the exclusive Dual Frame HV architecture featuring a fixed gantry along X-axis and a mobile gantry along Z-axis that made it possible to conceive a machine without ram to guarantee maximum performances in terms of constant rigidity and accuracy throughout the whole working volume.

In addition, the peculiar architecture of Y-axis saddle combined with the spindle head geometry makes it possible to go deep inside the part without any risk of collision with the machine crossbeam.

Jobs TARKUS is a double column horizontal/vertical milling centre with the exclusive Dual Frame HV architecture featuring a fixed gantry along X-axis and a mobile gantry along Z-axis that made it possible to conceive a machine without ram to guarantee maximum performances in terms of constant rigidity and accuracy throughout the whole working volume. In addition, the peculiar architecture of Y-axis saddle combined with the spindle head geometry makes it possible to go deep inside the part without any risk of collision with the machine crossbeam. Specially designed to meet the requirements of high-torque and high-power 5-axis machining on tough materials such as titanium, Inconel, stainless special and alloy steels, TARKUS satisfies the needs of end-users in the aerospace, precision general engineering and mould and die sectors who require increasingly compact machines capable of heavy-duty machining with high chip removal rates and able to guarantee high quality machining at a truly competitive hourly cost for a rapid return on investment. Jobs TARKUS è il centro di fresatura orizzontale/verticale con l’esclusiva architettura Dual Frame HV a portale fisso lungo l’asse X e mobile lungo Z che ha permesso di realizzare una macchina priva di cannotto per garantire le massime prestazioni in termini di rigidezza e precisione costanti in tutto il campo di lavoro. Inoltre, la conformazione del carro asse Y, combinata con la geometria della testa porta mandrino, permette di andare in profondità nel pezzo senza rischi di collisioni con la traversa della macchina. Realizzato appositamente per soddisfare le esigenze di lavorazioni a 5 assi ad alta coppia e potenza su materiali tenaci quali titanio, Inconel, inox, acciai speciali e legati, TARKUS risponde alle necessità degli utilizzatori nei settori aeronautico, meccanica generale di precisione e stampi che richiedono macchine di dimensioni sempre più compatte, capaci di lavorazioni pesanti con grossi volumi di asportazione di truciolo ed in grado di garantire lavorazioni di alta qualità a un costo orario veramente competitivo per un rapido ritorno dell’investimento.

TARKUS

Technical features

  • X-Axis 3300-4500 mm
  • Moving table with great loading capacity, integrated in the machine structure
  • Y-Axis 2100-2600 mm
  • Z-Axis 1000 mm
  • Speed up to 24 m/min

Fork-type twist head specifically conceived for full 5-axis heavy-duty machining on tough materials, up to 1500 Nm

  • Several tool magazines available:
    • Single/double chain with double gripper change arm from 48 to 96 positions
    • Rack type with large storage capacity for up to 300 tools
  • Tool cooling systems external and/or through tool and chip evacuation systems
  • Tool measuring and coding systems, probing systems
  • Dual-table configuration for pendulum machining with workpiece load/unload in masked time
  • Automatic pallet systemsi
